Square Jacks 2000 - 7000 Lbs

Square Jacks 2000 - 7000 Lbs

SKU:SJAK2

Capacity 2000 Lbs 5000 Lbs 7000 Lbs

Product variants

Quantity

Square Wind Down Jack

Static Load Capacity: 908kg (2000lbs)

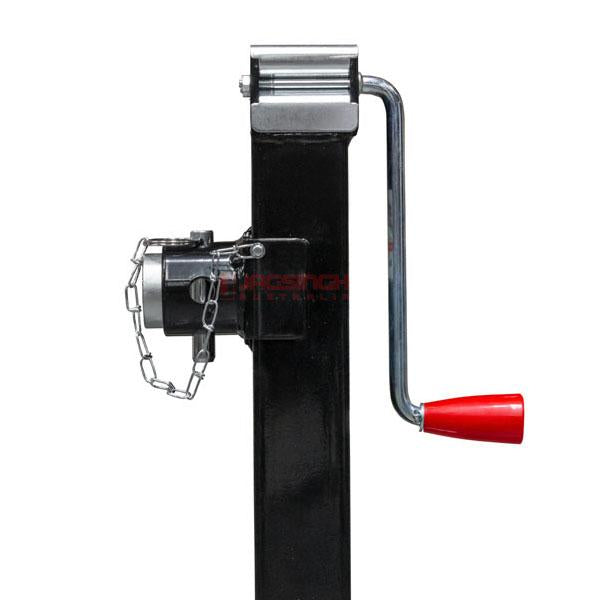

Side Handle
Swing Up Jack

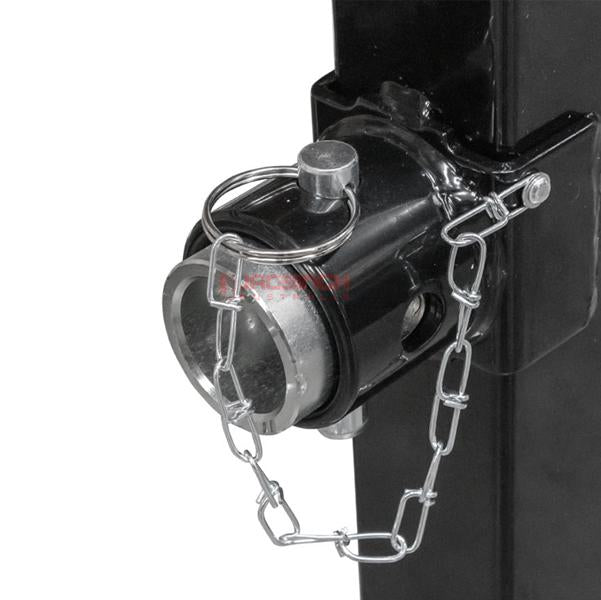

Quick Release Drop Pin
Finish: zinc plated
Min height: 435mm
Max height: 689mm
Extension: 254mm
Height from Center of Spigot to Foot Plate when Retracted: 275mm
Spigot Size: 40mm Tube
Outer Tube: 57.0 mm
Inner Tube: 50.0mm

Square Wind Down Jack

Static Load Capacity: 2268kg (5000lbs)
Side Handle
Swing Up Jack
Quick Release Drop Pin
Finish: zinc plated
Min height: 555mm
Max height: 936mm
Extension: 381mm
Height from Center of Spigot to Foot Plate when Retracted: 395mm
Spigot Size: 40mm Tube
Outer Tube: 57.0 mm
Inner Tube: 50.0mm

Square Wind Down Jack

Static Load Capacity: 3176kg (7000lbs)
Side Handle
Swing Up Jack
Quick Release Drop Pin
Finish: zinc plated
Min height: 528mm
Max height: 910mm
Extension: 382mm
Height from Center of Spigot to Foot Plate when Retracted: 427mm
Spigot Size: 40mm Tube
Outer Tube: 64.0 mm
Inner Tube: 57.0mm
