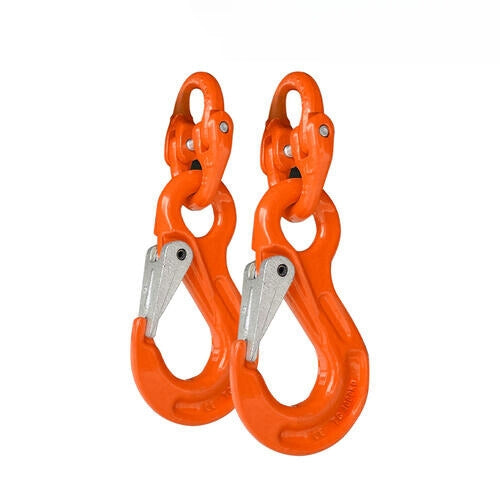

The kit includes 2 eye sling hooks and 2 chain connectors. It conforms to AS3776-2015, AS4177.4, and ADR6202 standards. Austlift Trailer Chains and Safety Kits are CTA approved.
The kits come in three sizes, each with different working load limits (WLL), breaking forces, and chain size compatibility. These kits meet towing requirements for various Aggregate Trailer Masses (ATM):
Innovative Design -

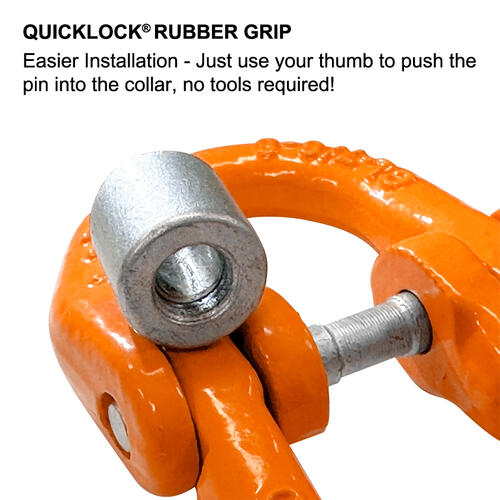

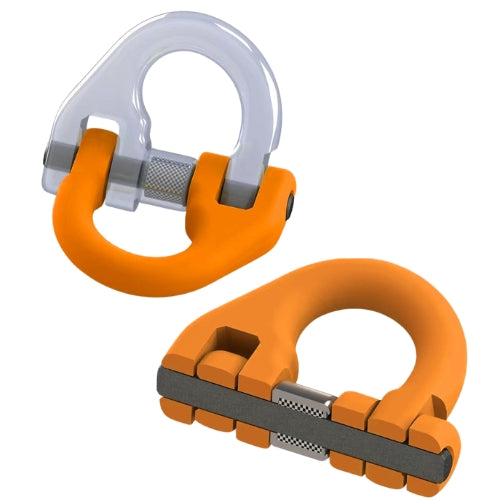

Easier Installation - Just use your thumb to push the pin into the collar, no tool required!
6mm Kit (Code: 103506)
-
Suitable for: 8mm Trailer Chain
-
Tow Capacity: 2 Ton (ATM - 2T)
-
Breaking Force: 4,480kg (4 to 1 safety factor as per AS3775.2)
-
Chain Breaking Strength: 2,406.53kg (8mm as per AS4177)
-
Shackle Standards: 500kg WLL, breaking at 2.95t
8mm Kit (Code: 103508)
-
Suitable for: 10mm & 13mm Trailer Chain
-
Tow Capacity: 4 Ton (ATM - 4T)
-
Breaking Force: 8,000kg (4 to 1 safety factor as per AS3775.2)
-
Chain Breaking Strength: 3,762.75kg (10mm) and 5,261.73kg (13mm as per AS4177)
-
Shackle Standards: 750kg WLL, breaking at 4.4t
10mm Kit (Code: 103510)
-
Suitable for: 13mm Trailer Chain
-
Tow Capacity: 6.4 Ton (ATM - 6.4T)
-
Breaking Force: 12,800kg (4 to 1 safety factor as per AS3775.2)
-
Chain Breaking Strength: 5,261.73kg (13mm as per AS4177)
-
Shackle Standards for Grade 30 Trailer Chain: 1000kg WLL, breaking at 5.95t
On standard 13mm grade 30 Transport Chain - ATM 3000kg to 3500KG
On 13mm / 16mm Grade 80 or Grade 100 Chain for Trailers - ATM 3500kg to 6400KG
