Couplemate Hubodometer Stainless for Caravans and Trailers Parallel Hub

Hubodometer for Caravans, RVs, Horsefloats and Trailers

The Hubodometer is a precision tool to ensure an accurate logbook for trailer or caravan maintenance.

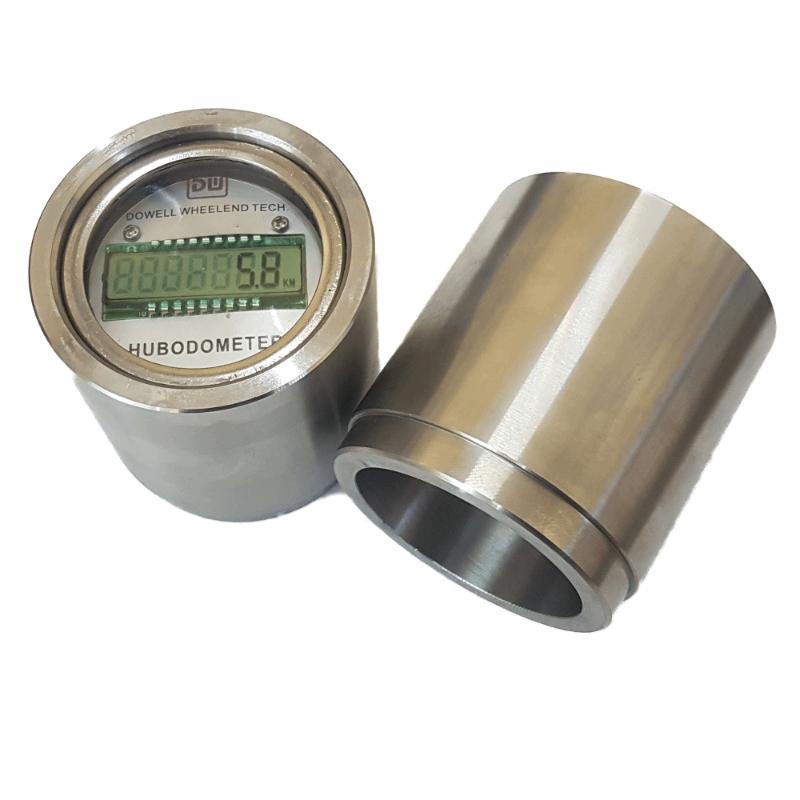

A single hubodometer is a 2 piece aluminium device that has moving parts to measure and record distance.

This 2 piece device allows the hubodometer to be easily removed to check bearings.

Selecting the correct hubodometer is as simple as choosing the outer bearing number from the list below.

What hubodometer fits your bearings?

• Slimline – LM12749 and LM11927
• Parallel – LM68149
• 1.98″ – 1.59t Dexter (3500lbs) – LM44649
• 2t Alko – 15123
• 2.441″ – 2t Dexter – 15123
• 2t Vehicle Components.
• 3t Alko – 29749

Special Note: a hubodometer measure the circumference of new tyre size. Worn and older tyres will vary a little to the actual distance covered.

How to Program your HubOdometer

Program the hubodometer on your caravan to the tyre size available from the above links.

The how to program the hubodometer sheet is available for download and printing by clicking this – link.

Installation

We recommend using a piece of wood and a hammer to install Hubodometer. The timber should cover the entire device, so the hammer load is even on all points when tapping it into position.

Note: It is essential Locktite is applied when hub-odometers are inserted into hubs to help prevent them from becoming dislodged during transit or stolen.

Some hub bosses can vary by as much 0.2mm.

This variation in some manufacturers hub sizes can cause a loose fitting bearing buddy.

We recommend a medium strength locking compound on all bearing buddies and Hub-odometers.

The Loctite applied on the fitment surfaces will help prevent the Hub-odometer from dislodgement from branches and rocks in extreme offroad conditions.

Log Book

A good start for your logbook caravan servicing would be

• 500 km after taking delivery.
• 5000 km highway or 1000kg offroad.

Hubodometers installed on caravans, and other rigs trigger a service event for manufacturers. Warranty issues are easier to understand when accurate kilometre reads are available.

The manufacturer’s checklist will incorporate some of the items below. However, this same list is a good start for the DIY brigade, with older rigs.

Checks

1. Bearing check.
2. Tyres wear check.
3. Electric brakes and/or disc pads check.
4. U-Bolt check.
5. Shackle bolts, bushes and shackle plates check.
6. Gas lines.
7. Coupling tightness.
8. Wheel nuts for tightness.

Did you know

Car tyres are tuned to your car speedo when new. Tyres have a specific circumference for each tyre.

Tyre wear as little as 10mm will drastically lower the actual speed, and the distance you have travelled, however, your gearbox rotations governs the speedo.

An example is, if you are driving at 105 kilometres per hour, your actual speed will be 100 kilometres per hour on used tyres.

To confirm your actual speed, we recommend using the GPS in your mobile phone for a more accurate reading.

Probably a good explanation of why Police have let me go after my speedo said 105 kph. The speedo is often wrong unless the car tyres are new.

AUSTRALIAN PROVISIONAL PATENT 2017904069
