AL-KO Premium 200mm dia c/w large locking pin swivel bracket

AL-KO Premium 200mm dia c/w large locking pin swivel bracket

SKU:628200XP3

The easy to use JW200SL AL-KO Premium swivel bracket jockey wheels are unique in design and covered by a Registered Design in Australia and New Zealand.

No need to remove it from the trailer, just pull the release handle and the jockey wheel rotates into a suitable travelling position.

A selection of mounting holes allows the optional use of U bolts to attach the jockey wheel to the drawbar.

Also suitable for marine use.

  • Static Capacity: 400kg
  • Wheel Size: 200mm (8") solid tyre
  • Weight: 8.5kg
  • Max Lift / extension: 250mm

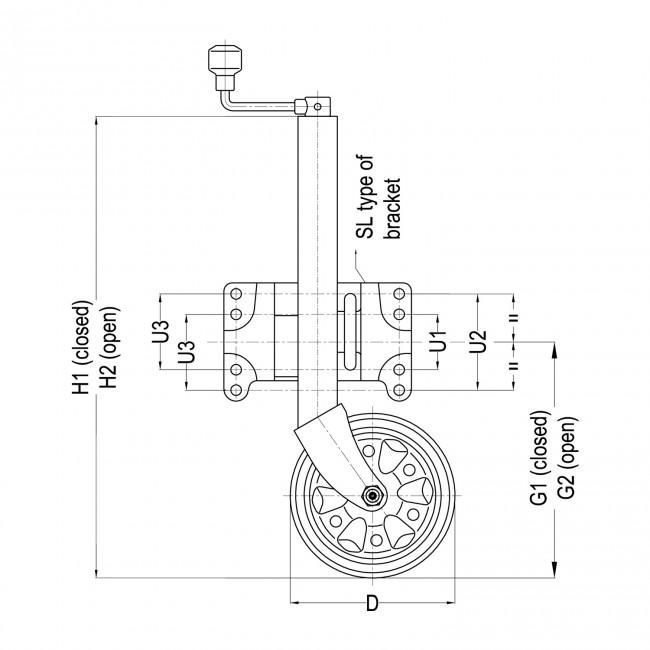

  • Minimum Ground Clearance(G1): 310mm (from centre of drawbar)
  • Maximum Ground Clearance(G2): 560mm (from centre of drawbar)
  • Overall Shaft Height Open: 820mm
  • Overall Shaft Height Closed: 570mm
  • Finish: Zinc Plated
  • Clamp: Swivel Bracket - Bolt on suit 75mm & 100mm u-bolts (not included)
  • Shipping Weight: 8.38 Kgs.
  • Shipping Dimensions: 13 cm x 70 cm x 33 cm.
  •
