3854 Series Stop/Tail/Indicator/Reverse

Features / Specifications

• Diffused Tail Function
• Sequential Indicator
• ADR Approved
• IP67 100% Waterproof
• Voltage Range 12-24 Volt

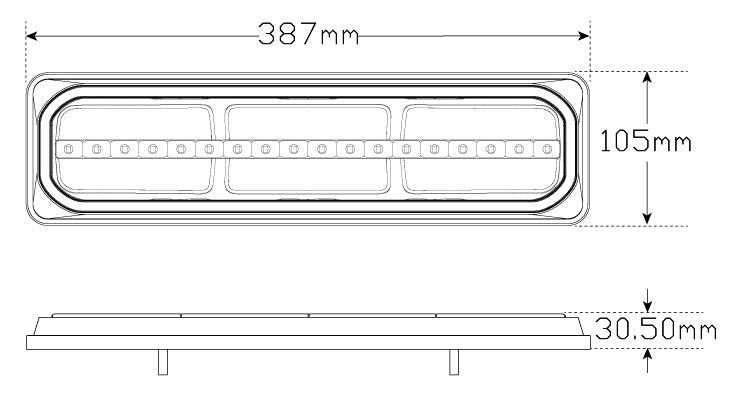

• 387mm x 105mm x 30.5mm
• 5 Year Warranty

Fitting Instructions

Separate the base plate from the lamp and horizontally mount, onto a flat surface using screws provided, ensuring the correct side is facing outwards. Run the wire through the hole in fixing surface then re-align the lamp and clip into the mounting base using light pressure to ensure it sits in place correctly. Please refer to ADR 13/00 for mounting instructions.
