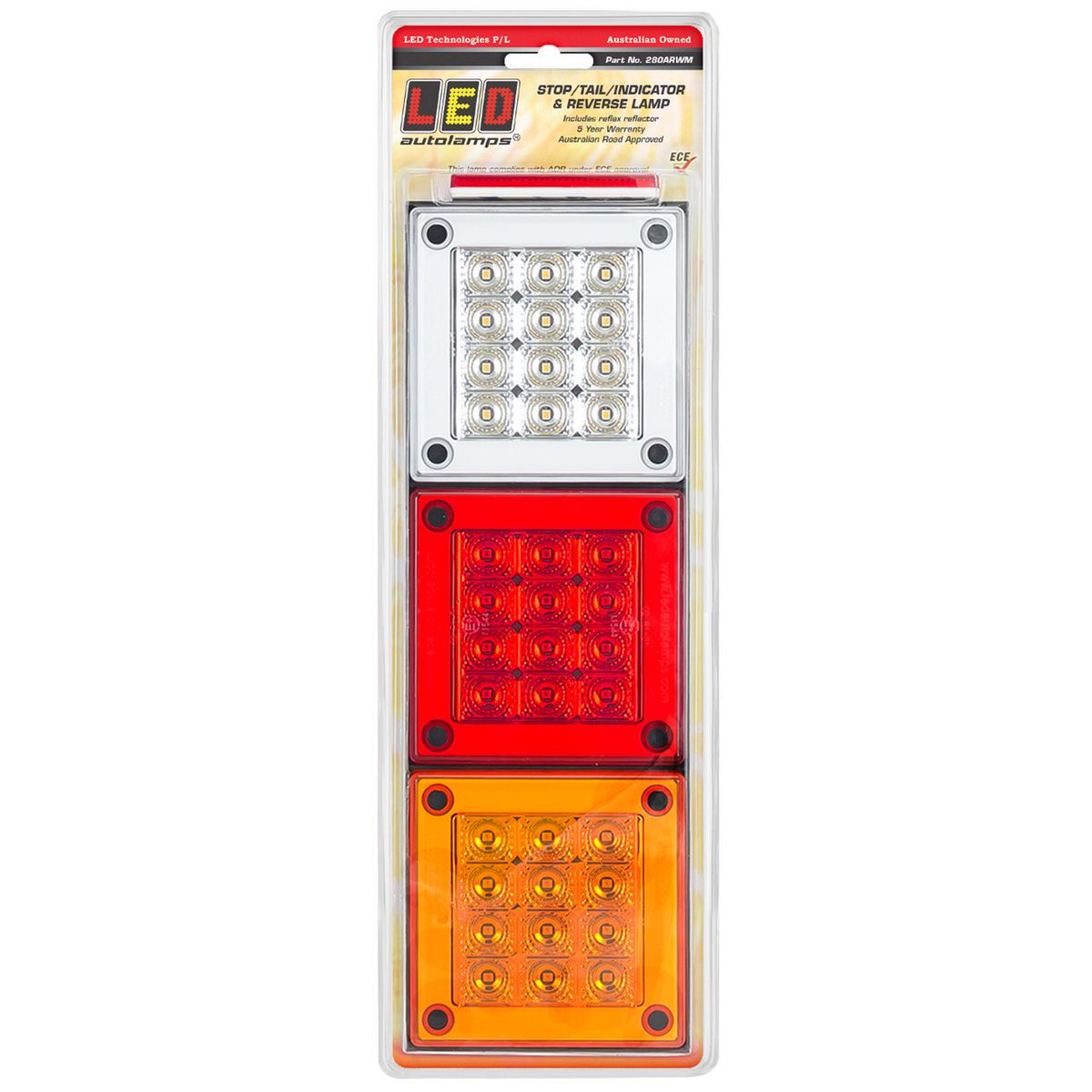

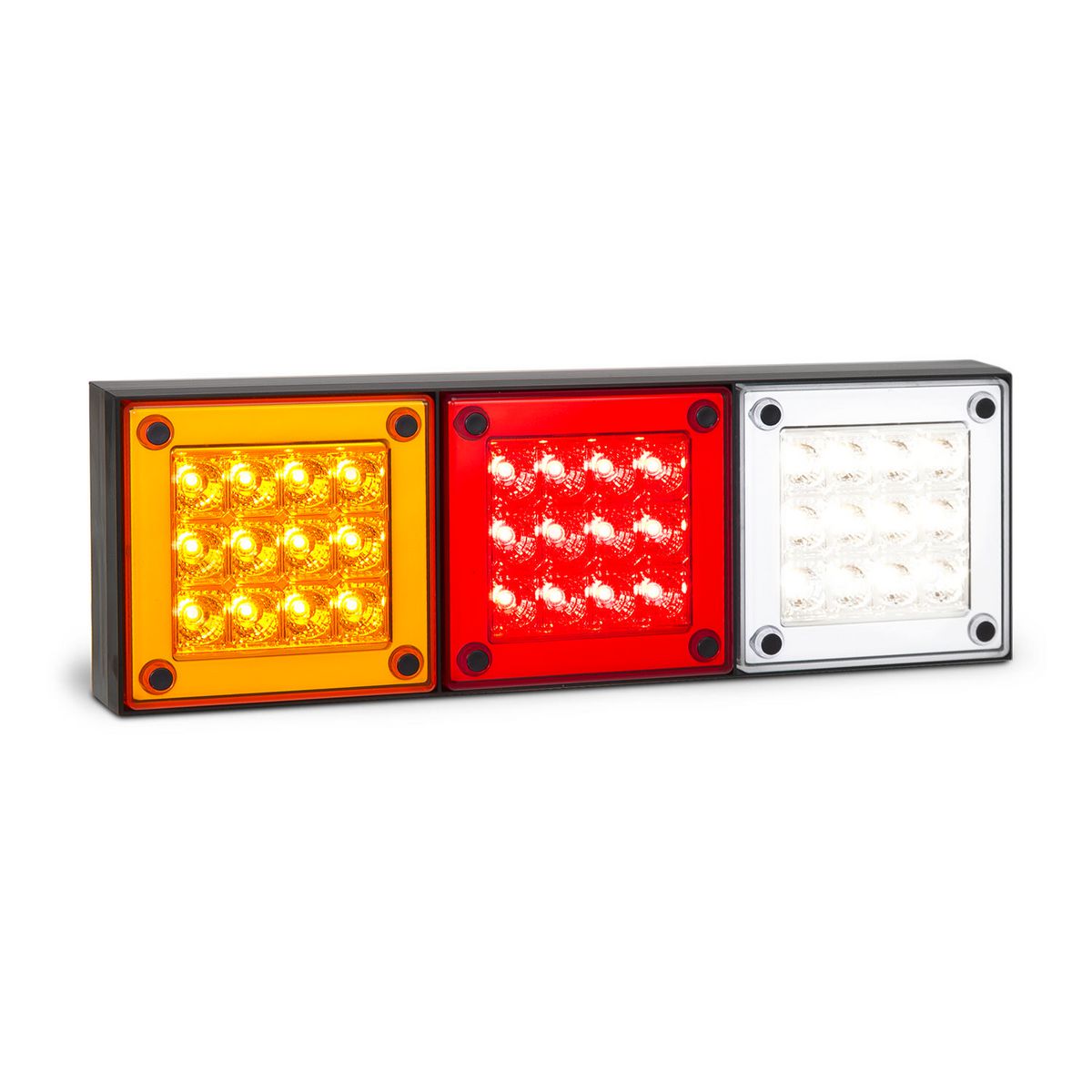

280 MINI JUMBO STOP/TAIL/INDICATOR/REVERSE 12-24V
280 MINI JUMBO STOP/TAIL/INDICATOR/REVERSE 12-24V
SKU:280ARWM
Couldn't load pickup availability
Features / Specifications
- New Design Mini Jumbo
- ECE Approved
- IP67 100% Water proof
- 12-24 Volt
- 5 Year Warranty
- 282mm x 95mm x 28mm
Fitting Instructions
Surface mount onto flat surface horizontally with stainless steel bolts provided in assembly and run cable through 12mm hole. Please refer to ADR 13/00.
Technical Drawings
FUNCTIONS:
| LED Qty | 36 | |||
| Cable | 1.2m | |||
| Draw | Stop | Tail | Ind | Rev |
| @13.8V | 0.15A | 0.02A | 0.14A | 0.17A |
| @28V | 0.11A | 0.03A | 0.11A | 0.13A |
| Approvals | Function | Approval No. | ||
| ECE | Stop/Tail | R1-S1-E9-02.11544 | ||
| ECE | Indicator | 2a-E9-01.11545 | ||
| ECE | Reverse | AR-E9-00.1207 | ||
| CTA | Stop/Tail/Ind/Rev | CTA-060088 | ||
