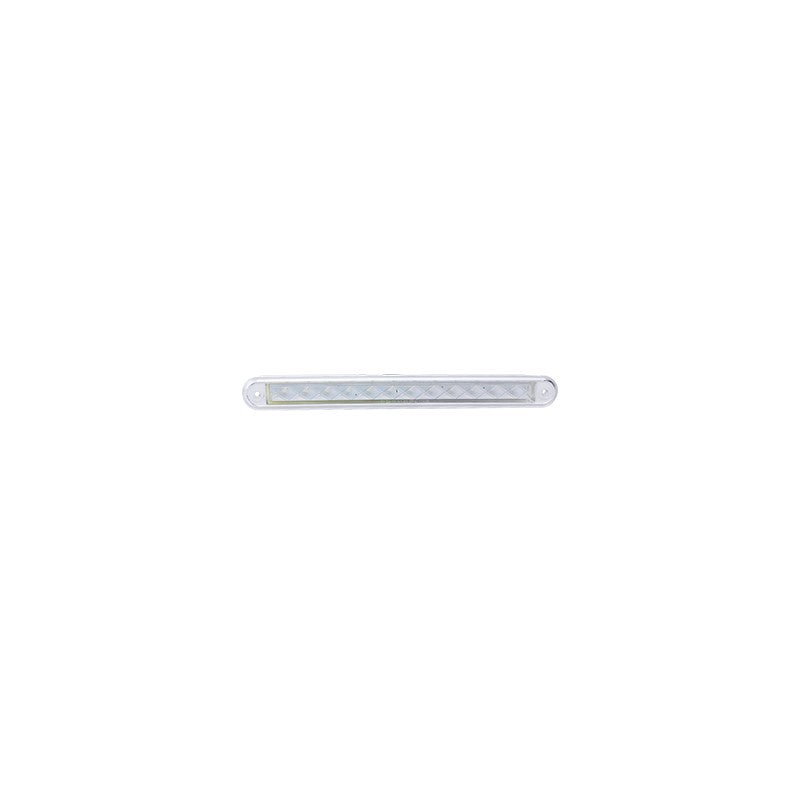

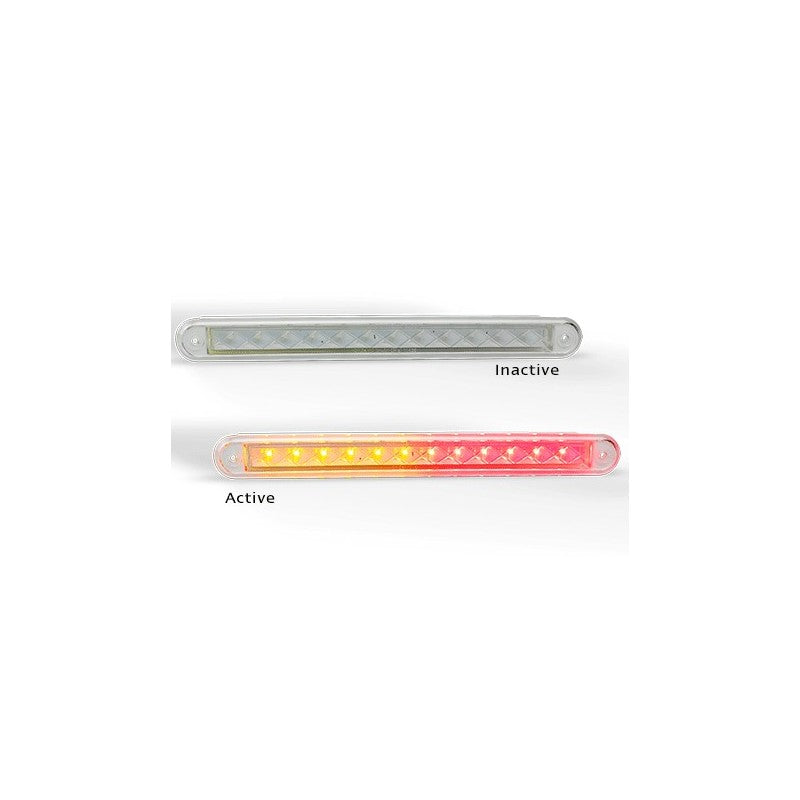

235 Series Recessed Mount

235AR12

Features / Specifications

Slimline Design
ECE/ADR approved
IP67 100% Water proof
12 Volt
5 Year Warranty
237mm x 25mm x 3mm

LED Qty	12
Cable	40cm

Fitting Instructions

Recessed - Mount onto flat surface horizontally. Push lamp and grommet into cutout (cut out 203mm x 19mm) in mounting surface, run wires through back and fix with screws (Max Torque - 8kgf/cm). Please refer to ADR 13/00 for mounting instructions.
