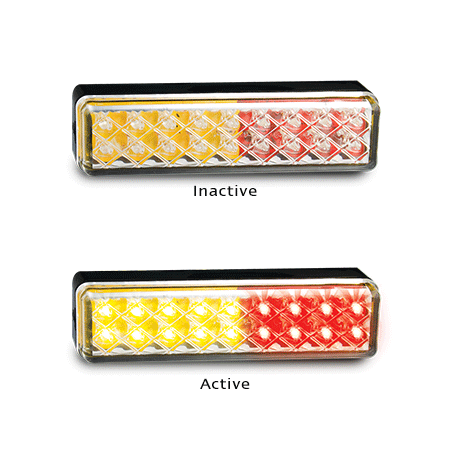

135 Series - Stop/Tail & Indicator Surface Mount
135 Series - Stop/Tail & Indicator Surface Mount

135 Series - Stop/Tail & Indicator Surface Mount

135ARM/2

FEATURES / SPECIFICATIONS:

  • Surface or Recessed Mount
  • Low Profile design
  • ADR approved
  • IP67 100% Water proof
  • Voltage Range 12-24 Volt
  • 5 Year Warranty

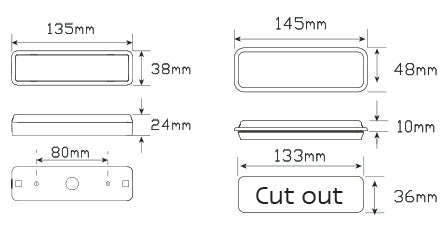

  • 135mm x 38mm x 24mm



FITTING INSTRUCTIONS:
Surface mount horizontally surface mount with screws or plugs
provided, run wires through back & clip lens into place.
Recess mount horizontally with grommet provided, run wires through
back & push lens into place, (cut out for grommet 133mm x 36mm)
Refer to ADR 13/00 for mounting instructions.
